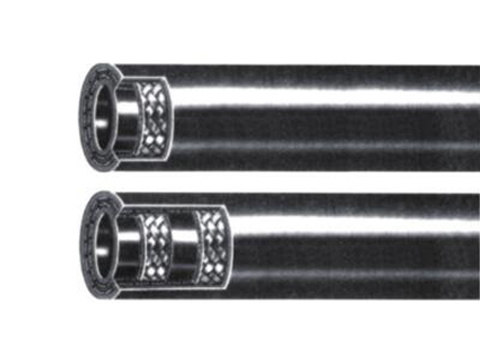

Inner rubber layer：Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer：one or two layers of steel wire weaving (1/4" ‒3/8"), pulse ≥300,000 times four layers of steel wire winding (1/2"‒2"), pulse ≥1 million times
Outer layer：non -stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)

Inner rubber layer：Nitrile or neoprene synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement layer：one or two layers of steel wire weaving (1/2" ‒3/4"), pulse ≥ 300,000 times, four layers of steel wire winding (1" ‒ 2"), pulse ≥ 1 million times
Outer layer：non -stripping, wear-resistant, weather-resistant synthetic rubber
Temperature range：-40℃ to +100℃ (-40℉ to +212℉) -40℃ to +121℃ (-40℉ to +250℉)

Inner Layer：Nylon
Reinforcement：4-layre of spiral high tensile steel wire
Outer Layer：Black or colored polyurethane
Temperaturn Range：-40℃~+85℃(-40℉~+185℉)

Tube：synthetic rubber, suitable for biodegradable hydraulic oil
Reinforcement：one or two braided ultra high-strength steel, to enhance the burst pressure of more than 15%. One layer braiding pulse is not less than 300,000 times, two layer braiding pulse is not less than 500,000 times
Cover：peel-free, wear-resistant, weather-resistant (more than three years) synthetic rubber
Temperature Range：-40℃~+100℃（-40℉ ~ +212℉）

Tube：CR/NBR synthetic rubber
Reinforcement：braided high tensile super fexible steel wire, one braid impulse reaches 300,000 cycles, two braids reaches 600,000 cycles
OuterLayer：skiving-free black smooth hose cover made of anti aging synthetic rubber
Low bending radius：309% lower than SAE/DIN standards

Tube：special compound rubber with good ultra-high temperature resistance and good oil resistance
Reinforcement：steel wire braid
Cover：high-temperature resistant and has excellent weather resistance good special rubber compound
Temperature range： -40 ℃ ~ + 208 ℃

Tube：Ultra-low-temperature resistance especially good, has good oil resistance special rubber compound
Reinforcement：steel wire braid
Cover：special compound rubber with good weather resistance
Temperature range： -55 ℃ ~ + 100 ℃

Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)

Tube：black oil-resistant synthetic rubber
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
Temperature range：-40 ° C ~ + 121 ° C (-40 ° F ~ + 250 ° F)
