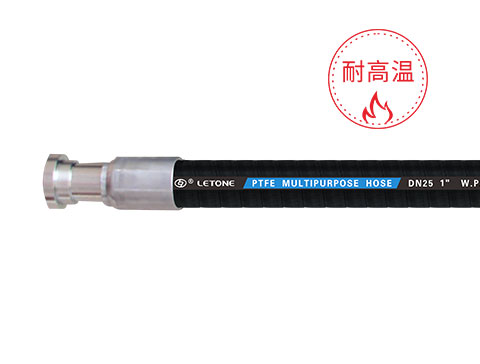

LT401H PTFE high-pressure multifunctional industrial hose

Application：Widely used in chemical, steel, construction, food, medicine and other fields. The product is suitable for high temperature working environment. Its super corrosion resistance makes it free from various corrosive liquid chemicals (sulfuric acid, Hydrochloric acid, sulfur reactants, etc.) erosion. The fully saturated nature of PTFE / PFA also makes it a good choice for tubes in the food and pharmaceutical industries

Inner layer：PTFE

Reinforcement layer：2-4 layers of super high flexible steel wire

Outer layer：EPDM / FKM

Temperature range：-30 ℃ ~ + 220 ℃ (-22 ℉ ~ + 428 ℉)

Reference standard：EN12115

online consultant Tel:+8616650911696

TECHNICAL PARAMETER

SIZE	I.D.	W.P.	B.P.
(in.)	(mm)	（MPa）	（MPa）
3/16"-2	5	42	166
1/4"-2	6	40	160
5/16"-2	8	35	140
3/8"-2	9	33	132
1/2"-2	12	28	110
5/8"-2	16	25	100
3/4"-2	19	22	85
1"-2	25	17	65
1 1/4"-2	31	13	50
1 1/2"-2	38	9	36
2"-2	50	8	32
1/2"-4	12	50	166
5/8"-4	16	45	180
3/4"-4	19	42	168
1"-4	25	38	152
1 1/4"-4	31	33	130
1 1/2"-4	38	29	116
2"-4	50	25	100
